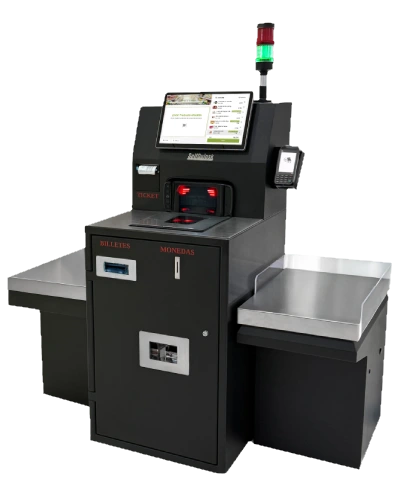

Name: SelfQuiosk
Brand: SelfQuiosk
SKU: 13221
Availability: InStock

Disponível

Partilhar

Adicionar à wishlist

SKU: 13221

Marca: SelfQuiosk

Descrição

Dimensions (width x height x depth)

Central module 570 x 1335 x 610 mm
With 2 auxiliary modules 1405 x 1335 x 610 mm

Processor and communications: Android model

Processor Rockchip RK3588
Cores 8
Architecture 4x ARM Cortex A76 @
2,30 GHz 4 x ARM
Cortex A55 1,80 GHz
GPU Mali – G610
RAM 8Gb
Internal storage 64Gb
Operating system Android 13
Audio output 1 x female jack 3,5mm
USB 1 x 3.0-OTG, 1 x 3.0, 4 x
2.0 (type A)
Video 1 x HDMI
Ethernet connector 2 x RJ45 1000M
RS232 COM serial port 3 x DB9
Memory card slot Micro SD
Play Store No
Standby power < 3W
Operating power < 15W

Processor and communications Windows model

Processor Intel core ultra 7 155U
Cores 12
Threads 14
Base frequency 1,7 GHZ
Maximum frequency 4,8 GHz
RAM DDR5 16GB
Internal storage 128 GB SSD
Operating system Windows 11 by default
WiFi WiFi 6
TPM 2.0 compatible √
Integrated graphics Intel Arc Graphics
Audio Realtek ALC897 HD
USB 4 x 3.2, 2 x 2.0
Video 1 x VGA, 1 x HDMI
Ethernet connector 1 x RJ45 1000M
RS232 COM serial port 6 x DB9
Standby power < 3W
Operating power < 60W
Display
Display size 15,6”
(370.1x224.6x30mm)
Resolution 1920 x 1080
Screen density 320 dpi
Video connector HDMI Input
Touchscreen connector USB-A
Power connector DC 12V input with AC
110V-240V adapter
Touchscreen Capacitive multi-point
(G+G)
Stereo speaker 2 x 2W
Brightness 250 nits
Contrast ratio 700 : 1
Color 16.7M
Viewing angle 178/178
Chassis Aluminum and steel alloy
Surface Hardened glass
VESA mount 75 x 75
IP65 protection √
Standby power < 3W
Working power < 15W

Datalogic 3510 scanner specifications

1D linear codes All 1D standard including
GS1 DataBar™
2D codes Aztec Code; Data Matrix
(ECC200 Only);
MaxiCode; QR Code
‘Stacked’ codes GS1 DataBar
Composites; GS1
DataBar Expanded
Stacked; GS1 DataBar
Stacked; GS1 DataBar
Stacked Omnidirectional;
MicroPDF417; PDF417
Image capture Formats BMP, JPEG;
Greyscale: 256, 16, 2
Image sensor 1280 x 1024
Lighting Multiple diffused 625 nm
LEDs
Dimensions 15,2 x 15,2 cm

Datalogic 9300 scanner specifications

1D linear codes All 1D standard including
GS1 DataBar™
2D codes Aztec Code; Data Matrix;
QR Code, Micro QR Code
‘Stacked’ codes EAN/JAN Composites;
GS1 DataBar
Composites; GS1
DataBar Expanded
Stacked; GS1 DataBar
Stacked Omnidirectional;
MicroPDF417; PDF417;
UPC A/E Composites
Image capture Horizontal and vertical window; Formats:
BMP, JPEG; Greyscale: 256, 16, 2
Read range Perfect reading of linear
and 2D codes in all

Print specifications

Receipt printer Thermal printing
Speed 170mm/sec
Resolution 576 DPI
Paper width 80mm
Paper roll diameter Max Ø 83mm
Auto cutter √
Emulation ESC/POS

Coins and banknotes

Accepts, validates and dispenses coins EURO: from 1ct to 2€
Counterfeit coin detection and rejection √
Fast coin load √
Coin recycler capacity 1.500
Coin validation speed 4 coins/s
Coin dispensing speed 12 coins/s
Capacity of overflow coin deposit 1.500
Accepts, validates and dispenses banknotes EURO: from 5€ to 500€
Counterfeit banknotes detection and rejection √
Banknotes validation speed 2 s/banknote
Banknotes dispensing speed 2 s/banknote
Number of recyclers 4 (Free designation of denominations)
Banknotes recycling capacity 30 per recycler
Banknotes cassette capacity 400
(1000 optional)

Também poderá gostar

Novidades

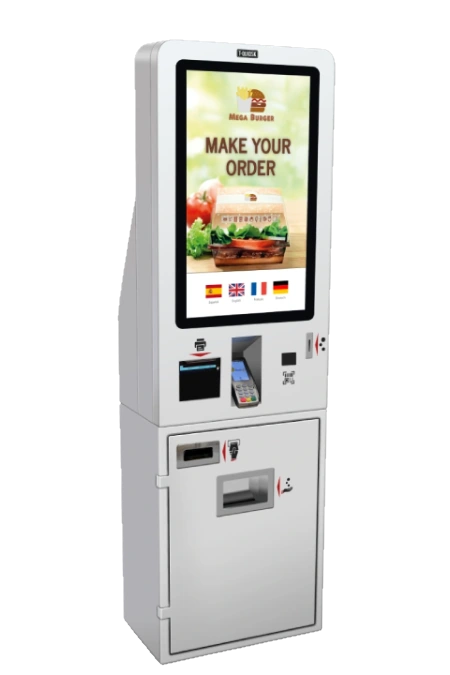

T-Quiosk Android

T-Quiosk

Preço sob consulta

Novidades

T-Quiosk Windows

T-Quiosk

Preço sob consulta

Novidades

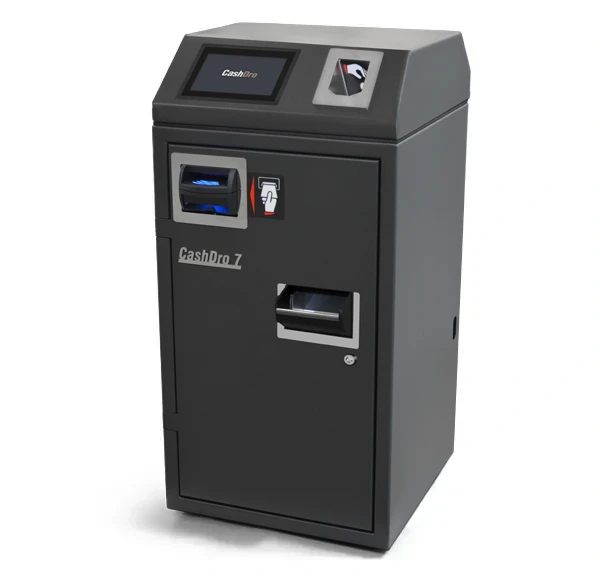

CashDro 7 - Máquina de Pagamento Automático

CashDro

Preço sob consulta

Novidades

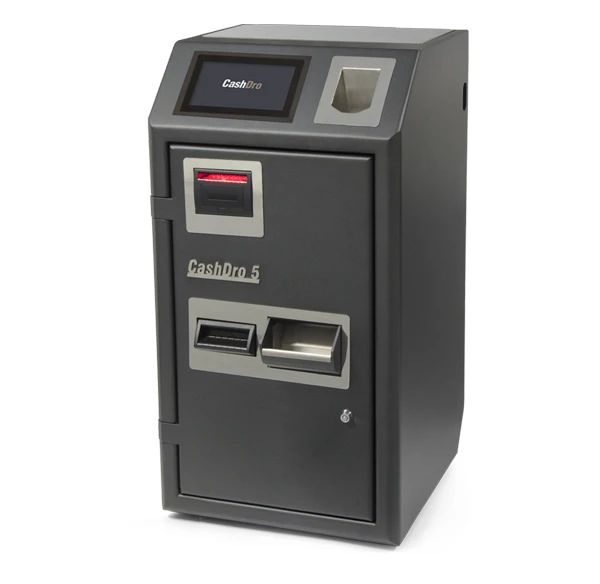

CashDro 5 - Máquina de Pagamento Automático

CashDro

Preço sob consulta

Novidades

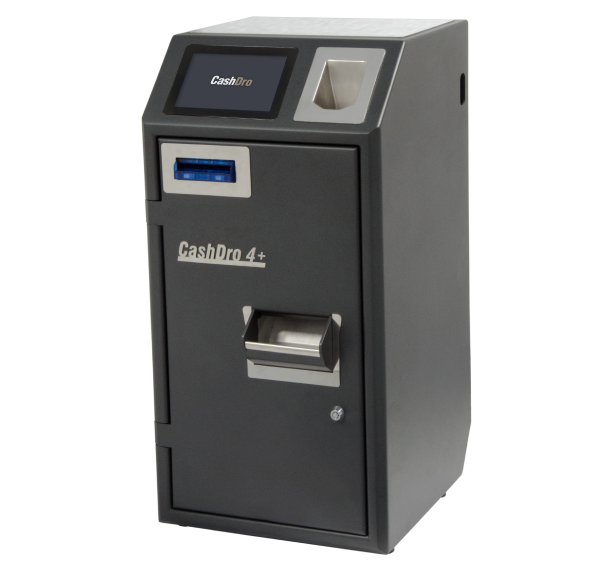

CashDro 4+ - Máquina de Pagamento Automático

CashDro

Preço sob consulta

Novidades

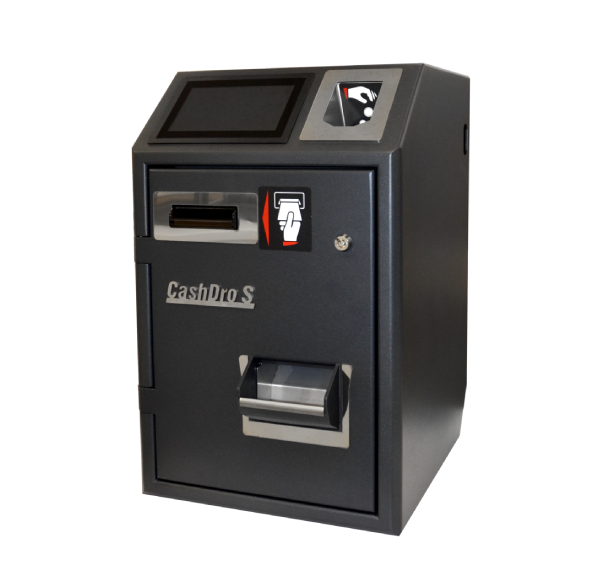

CashDro S - Máquina de Pagamento Automático
